介绍

Docker Compose 是官方编排的项目之一,负责快速的部署分布式应用。

使用Docker Compose可以轻松、高效的管理容器,它是一个用户定义和运行多个容器的Docker应用程序。

在Docker Compose中你可以使用YAML文件来配置你的应用服务,然后只需要一个简单的命令,就可以创建并启动你配置的所有服务。

实验设备及需求

  • 前后端项目一份(Vue+spring)

  • Ubuntu(已装docker及docker-compose)

一、文件目录总览

目录文件夹如下:

目录总览

  • 前端:nginx部署

  • 后端:Java8环境运行jar包

  • 数据库:mysql、redis

为了让其他同学更好的理解创建过程,以后能够写出适合自己的,以下会分模块进行粗略解释,完整代码可见第六点。

二、前端Nginx

前端项目中ip地址改为宿主机ip地址npm run build打包前端代码放入指定路径中

docker-compose.yml文件中的:符号,前面的路径/端口表示宿主机的(自定义),后面的路径/端口表示容器的(基本不用修改)

docker-compose内前端服务

1
2
3
4
5
6
7
8
9
10
11
12
13
nginx:
image: nginx:latest
container_name: nginx
restart: always
volumes:
- ./config/nginx/nginx.conf:/etc/nginx/nginx.conf # nginx配置文件
- ./config/html/dist/:/usr/share/nginx/html/ # 前端打包文件
ports:
- "8080:80"
networks:
data_security:
ipv4_address: 10.1.0.8
privileged: true # 这个必须要,解决nginx的文件调用的权限问题

nginx.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
worker_processes  1;

events {
worker_connections 1024;
}
http {
include mime.types;
default_type application/octet-stream;

sendfile on;

keepalive_timeout 65;
server {
listen 80;
server_name localhost;

location / {
root /usr/share/nginx/html;
try_files $uri $uri/ /index.html last; # 在原来的文件中添加这句
index index.html index.htm;
}

error_page 500 502 503 504 /50x.html;
location = /50x.html {
root /usr/share/nginx/html;
}
}
}

三、数据库Mysql、Redis

docker-compose内数据库服务

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
mysql:
image: mysql:8.0.12
container_name: mysql
restart: always
environment:
- TZ=Asia/Shanghai
- MYSQL_ROOT_PASSWORD=123456 #数据库初始话为root用户设置的默认密码
- MYSQL_DATABASE=xx # 项目数据库名
# - MYSQL_USER: #自定义数据库的用户,权限只作用于MYSQL_DATABASE配置的数据库
# - MYSQL_PASSWORD: #自定义数据库的用户,权限只作用于MYSQL_DATABASE配置的数据库
volumes:
# - ./config/mysql/cnf/my.cnf:/etc/my.cnf
# - ./config/mysql/data:/var/lib/mysql
- ./config/mysql/init/xx.sql:/docker-entrypoint-initdb.d/xx.sql # 自己的sql文件
ports:
- "3306:3306"
networks:
data_security:
ipv4_address: 10.1.0.2
command: --default-authentication-plugin=mysql_native_password --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci --sql-mode='' --max-execution-time=1000


redis:
image: redis:latest
container_name: redis
restart: always
environment:
- TZ=Asia/Shanghai
- REDIS_ROOT_PASSWORD=passwd
volumes:
- ./config/redis/conf/redis.conf:/etc/redis/redis.conf #挂载redis.conf不然后续重启redis密码会失效
- ./config/redis/data:/data
# - ./config/redis/log/redis.log:/logs/redis.log
ports:
- "6379:6379"
networks:
data_security:
ipv4_address: 10.1.0.3
# privileged: true
command: redis-server /etc/redis/redis.conf --requirepass passwd #指定配置文件启动redis

mysql命令command中:

命令 描述
–default-authentication-plugin=mysql_native_password 默认的身份认证插件
–character-set-server=utf8mb4 将MySQL数据库相关的字符集都设置为utf8mb4
–sql-mode=‘’ 默认值为空,此时MySQL执行的不严格的检查
–max-execution-time=1000 最大执行时间

👉项目中没有配置redis的可以跳过了。

Redis配置文件redis.conf

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
# Redis配置文件样例

# Redis默认不是以守护进程的方式运行,可以通过该配置项修改,使用yes启用守护进程
# 启用守护进程后,Redis会把pid写到一个pidfile中,在/var/run/redis.pid
daemonize no

# 当Redis以守护进程方式运行时,Redis默认会把pid写入/var/run/redis.pid文件,可以通过pidfile指定
pidfile /var/run/redis.pid

# 指定Redis监听端口,默认端口为6379
# 如果指定0端口,表示Redis不监听TCP连接
port 6379

# 绑定的主机地址
# 你可以绑定单一接口,如果没有绑定,所有接口都会监听到来的连接
# bind 0.0.0.0
# 2、关闭保护机制
protected-mode no

# Specify the path for the unix socket that will be used to listen for
# incoming connections. There is no default, so Redis will not listen
# on a unix socket when not specified.
#
# unixsocket /tmp/redis.sock
# unixsocketperm 755

# 当客户端闲置多长时间后关闭连接,如果指定为0,表示关闭该功能
timeout 0

# 指定日志记录级别,Redis总共支持四个级别:debug、verbose、notice、warning,默认为verbose
# debug (很多信息, 对开发/测试比较有用)
# verbose (many rarely useful info, but not a mess like the debug level)
# notice (moderately verbose, what you want in production probably)
# warning (only very important / critical messages are logged)
loglevel verbose

# 日志记录方式,默认为标准输出,如果配置为redis为守护进程方式运行,而这里又配置为标准输出,则日志将会发送给/dev/null
logfile ""

# To enable logging to the system logger, just set 'syslog-enabled' to yes,
# and optionally update the other syslog parameters to suit your needs.
# syslog-enabled no

# Specify the syslog identity.
# syslog-ident redis

# Specify the syslog facility. Must be USER or between LOCAL0-LOCAL7.
# syslog-facility local0

# 设置数据库的数量,默认数据库为0,可以使用select <dbid>命令在连接上指定数据库id
# dbid是从0到‘databases’-1的数目
databases 16

################################ SNAPSHOTTING #################################
# 指定在多长时间内,有多少次更新操作,就将数据同步到数据文件,可以多个条件配合
# Save the DB on disk:
#
# save <seconds> <changes>
#
# Will save the DB if both the given number of seconds and the given
# number of write operations against the DB occurred.
#
# 满足以下条件将会同步数据:
# 900秒(15分钟)内有1个更改
# 300秒(5分钟)内有10个更改
# 60秒内有10000个更改
# Note: 可以把所有“save”行注释掉,这样就取消同步操作了

save 900 1
save 300 10
save 60 10000

# 指定存储至本地数据库时是否压缩数据,默认为yes,Redis采用LZF压缩,如果为了节省CPU时间,可以关闭该选项,但会导致数据库文件变的巨大
rdbcompression yes

# 指定本地数据库文件名,默认值为dump.rdb
dbfilename dump.rdb

# 工作目录.
# 指定本地数据库存放目录,文件名由上一个dbfilename配置项指定
#
# Also the Append Only File will be created inside this directory.
#
# 注意,这里只能指定一个目录,不能指定文件名
dir ./

################################# REPLICATION #################################

# 主从复制。使用slaveof从 Redis服务器复制一个Redis实例。注意,该配置仅限于当前slave有效
# so for example it is possible to configure the slave to save the DB with a
# different interval, or to listen to another port, and so on.
# 设置当本机为slav服务时,设置master服务的ip地址及端口,在Redis启动时,它会自动从master进行数据同步
# slaveof <masterip> <masterport>


# 当master服务设置了密码保护时,slav服务连接master的密码
# 下文的“requirepass”配置项可以指定密码
# masterauth <master-password>

# When a slave lost the connection with the master, or when the replication
# is still in progress, the slave can act in two different ways:
#
# 1) if slave-serve-stale-data is set to 'yes' (the default) the slave will
# still reply to client requests, possibly with out of data data, or the
# data set may just be empty if this is the first synchronization.
#
# 2) if slave-serve-stale data is set to 'no' the slave will reply with
# an error "SYNC with master in progress" to all the kind of commands
# but to INFO and SLAVEOF.
#
slave-serve-stale-data yes

# Slaves send PINGs to server in a predefined interval. It's possible to change
# this interval with the repl_ping_slave_period option. The default value is 10
# seconds.
#
# repl-ping-slave-period 10

# The following option sets a timeout for both Bulk transfer I/O timeout and
# master data or ping response timeout. The default value is 60 seconds.
#
# It is important to make sure that this value is greater than the value
# specified for repl-ping-slave-period otherwise a timeout will be detected
# every time there is low traffic between the master and the slave.
#
# repl-timeout 60

################################## SECURITY ###################################

# Warning: since Redis is pretty fast an outside user can try up to
# 150k passwords per second against a good box. This means that you should
# use a very strong password otherwise it will be very easy to break.
# 设置Redis连接密码,如果配置了连接密码,客户端在连接Redis时需要通过auth <password>命令提供密码,默认关闭
requirepass passwd
# Command renaming.
#
# It is possilbe to change the name of dangerous commands in a shared
# environment. For instance the CONFIG command may be renamed into something
# of hard to guess so that it will be still available for internal-use
# tools but not available for general clients.
#
# Example:
#
# rename-command CONFIG b840fc02d524045429941cc15f59e41cb7be6c52
#
# It is also possilbe to completely kill a command renaming it into
# an empty string:
#
# rename-command CONFIG ""

################################### LIMITS ####################################

# 设置同一时间最大客户端连接数,默认无限制,Redis可以同时打开的客户端连接数为Redis进程可以打开的最大文件描述符数,
# 如果设置maxclients 0,表示不作限制。当客户端连接数到达限制时,Redis会关闭新的连接并向客户端返回max Number of clients reached错误信息
# maxclients 128

# Don't use more memory than the specified amount of bytes.
# When the memory limit is reached Redis will try to remove keys with an
# EXPIRE set. It will try to start freeing keys that are going to expire
# in little time and preserve keys with a longer time to live.
# Redis will also try to remove objects from free lists if possible.
#
# If all this fails, Redis will start to reply with errors to commands
# that will use more memory, like SET, LPUSH, and so on, and will continue
# to reply to most read-only commands like GET.
#
# WARNING: maxmemory can be a good idea mainly if you want to use Redis as a
# 'state' server or cache, not as a real DB. When Redis is used as a real
# database the memory usage will grow over the weeks, it will be obvious if
# it is going to use too much memory in the long run, and you'll have the time
# to upgrade. With maxmemory after the limit is reached you'll start to get
# errors for write operations, and this may even lead to DB inconsistency.
# 指定Redis最大内存限制,Redis在启动时会把数据加载到内存中,达到最大内存后,Redis会先尝试清除已到期或即将到期的Key,
# 当此方法处理后,仍然到达最大内存设置,将无法再进行写入操作,但仍然可以进行读取操作。
# Redis新的vm机制,会把Key存放内存,Value会存放在swap区
# maxmemory <bytes>

# MAXMEMORY POLICY: how Redis will select what to remove when maxmemory
# is reached? You can select among five behavior:
#
# volatile-lru -> remove the key with an expire set using an LRU algorithm
# allkeys-lru -> remove any key accordingly to the LRU algorithm
# volatile-random -> remove a random key with an expire set
# allkeys->random -> remove a random key, any key
# volatile-ttl -> remove the key with the nearest expire time (minor TTL)
# noeviction -> don't expire at all, just return an error on write operations
#
# Note: with all the kind of policies, Redis will return an error on write
# operations, when there are not suitable keys for eviction.
#
# At the date of writing this commands are: set setnx setex append
# incr decr rpush lpush rpushx lpushx linsert lset rpoplpush sadd
# sinter sinterstore sunion sunionstore sdiff sdiffstore zadd zincrby
# zunionstore zinterstore hset hsetnx hmset hincrby incrby decrby
# getset mset msetnx exec sort
#
# The default is:
#
# maxmemory-policy volatile-lru

# LRU and minimal TTL algorithms are not precise algorithms but approximated
# algorithms (in order to save memory), so you can select as well the sample
# size to check. For instance for default Redis will check three keys and
# pick the one that was used less recently, you can change the sample size
# using the following configuration directive.
#
# maxmemory-samples 3

############################## APPEND ONLY MODE ###############################

#
# Note that you can have both the async dumps and the append only file if you
# like (you have to comment the "save" statements above to disable the dumps).
# Still if append only mode is enabled Redis will load the data from the
# log file at startup ignoring the dump.rdb file.
# 指定是否在每次更新操作后进行日志记录,Redis在默认情况下是异步的把数据写入磁盘,如果不开启,可能会在断电时导致一段时间内的数据丢失。
# 因为redis本身同步数据文件是按上面save条件来同步的,所以有的数据会在一段时间内只存在于内存中。默认为no
# IMPORTANT: Check the BGREWRITEAOF to check how to rewrite the append
# log file in background when it gets too big.

appendonly no

# 指定更新日志文件名,默认为appendonly.aof
# appendfilename appendonly.aof

# The fsync() call tells the Operating System to actually write data on disk
# instead to wait for more data in the output buffer. Some OS will really flush
# data on disk, some other OS will just try to do it ASAP.

# 指定更新日志条件,共有3个可选值:
# no:表示等操作系统进行数据缓存同步到磁盘(快)
# always:表示每次更新操作后手动调用fsync()将数据写到磁盘(慢,安全)
# everysec:表示每秒同步一次(折衷,默认值)

appendfsync everysec
# appendfsync no

# When the AOF fsync policy is set to always or everysec, and a background
# saving process (a background save or AOF log background rewriting) is
# performing a lot of I/O against the disk, in some Linux configurations
# Redis may block too long on the fsync() call. Note that there is no fix for
# this currently, as even performing fsync in a different thread will block
# our synchronous write(2) call.
#
# In order to mitigate this problem it's possible to use the following option
# that will prevent fsync() from being called in the main process while a
# BGSAVE or BGREWRITEAOF is in progress.
#
# This means that while another child is saving the durability of Redis is
# the same as "appendfsync none", that in pratical terms means that it is
# possible to lost up to 30 seconds of log in the worst scenario (with the
# default Linux settings).
#
# If you have latency problems turn this to "yes". Otherwise leave it as
# "no" that is the safest pick from the point of view of durability.
no-appendfsync-on-rewrite no

# Automatic rewrite of the append only file.
# Redis is able to automatically rewrite the log file implicitly calling
# BGREWRITEAOF when the AOF log size will growth by the specified percentage.
#
# This is how it works: Redis remembers the size of the AOF file after the
# latest rewrite (or if no rewrite happened since the restart, the size of
# the AOF at startup is used).
#
# This base size is compared to the current size. If the current size is
# bigger than the specified percentage, the rewrite is triggered. Also
# you need to specify a minimal size for the AOF file to be rewritten, this
# is useful to avoid rewriting the AOF file even if the percentage increase
# is reached but it is still pretty small.
#
# Specify a precentage of zero in order to disable the automatic AOF
# rewrite feature.

auto-aof-rewrite-percentage 100
auto-aof-rewrite-min-size 64mb

################################## SLOW LOG ###################################

# The Redis Slow Log is a system to log queries that exceeded a specified
# execution time. The execution time does not include the I/O operations
# like talking with the client, sending the reply and so forth,
# but just the time needed to actually execute the command (this is the only
# stage of command execution where the thread is blocked and can not serve
# other requests in the meantime).
#
# You can configure the slow log with two parameters: one tells Redis
# what is the execution time, in microseconds, to exceed in order for the
# command to get logged, and the other parameter is the length of the
# slow log. When a new command is logged the oldest one is removed from the
# queue of logged commands.

# The following time is expressed in microseconds, so 1000000 is equivalent
# to one second. Note that a negative number disables the slow log, while
# a value of zero forces the logging of every command.
slowlog-log-slower-than 10000

# There is no limit to this length. Just be aware that it will consume memory.
# You can reclaim memory used by the slow log with SLOWLOG RESET.
slowlog-max-len 1024

################################ VIRTUAL MEMORY ###############################

### WARNING! Virtual Memory is deprecated in Redis 2.4
### The use of Virtual Memory is strongly discouraged.

### WARNING! Virtual Memory is deprecated in Redis 2.4
### The use of Virtual Memory is strongly discouraged.

# Virtual Memory allows Redis to work with datasets bigger than the actual
# amount of RAM needed to hold the whole dataset in memory.
# In order to do so very used keys are taken in memory while the other keys
# are swapped into a swap file, similarly to what operating systems do
# with memory pages.
# 指定是否启用虚拟内存机制,默认值为no,
# VM机制将数据分页存放,由Redis将访问量较少的页即冷数据swap到磁盘上,访问多的页面由磁盘自动换出到内存中
# 把vm-enabled设置为yes,根据需要设置好接下来的三个VM参数,就可以启动VM了
# vm-enabled no
# vm-enabled yes

# This is the path of the Redis swap file. As you can guess, swap files
# can't be shared by different Redis instances, so make sure to use a swap
# file for every redis process you are running. Redis will complain if the
# swap file is already in use.
#
# Redis交换文件最好的存储是SSD(固态硬盘)
# 虚拟内存文件路径,默认值为/tmp/redis.swap,不可多个Redis实例共享
# *** WARNING *** if you are using a shared hosting the default of putting
# the swap file under /tmp is not secure. Create a dir with access granted
# only to Redis user and configure Redis to create the swap file there.
# vm-swap-file /tmp/redis.swap

# With vm-max-memory 0 the system will swap everything it can. Not a good
# default, just specify the max amount of RAM you can in bytes, but it's
# better to leave some margin. For instance specify an amount of RAM
# that's more or less between 60 and 80% of your free RAM.
# 将所有大于vm-max-memory的数据存入虚拟内存,无论vm-max-memory设置多少,所有索引数据都是内存存储的(Redis的索引数据就是keys)
# 也就是说当vm-max-memory设置为0的时候,其实是所有value都存在于磁盘。默认值为0
# vm-max-memory 0

# Redis swap文件分成了很多的page,一个对象可以保存在多个page上面,但一个page上不能被多个对象共享,vm-page-size是要根据存储的数据大小来设定的。
# 建议如果存储很多小对象,page大小最后设置为32或64bytes;如果存储很大的对象,则可以使用更大的page,如果不确定,就使用默认值
# vm-page-size 32

# 设置swap文件中的page数量由于页表(一种表示页面空闲或使用的bitmap)是存放在内存中的,在磁盘上每8个pages将消耗1byte的内存
# swap空间总容量为 vm-page-size * vm-pages
#
# With the default of 32-bytes memory pages and 134217728 pages Redis will
# use a 4 GB swap file, that will use 16 MB of RAM for the page table.
#
# It's better to use the smallest acceptable value for your application,
# but the default is large in order to work in most conditions.
# vm-pages 134217728

# Max number of VM I/O threads running at the same time.
# This threads are used to read/write data from/to swap file, since they
# also encode and decode objects from disk to memory or the reverse, a bigger
# number of threads can help with big objects even if they can't help with
# I/O itself as the physical device may not be able to couple with many
# reads/writes operations at the same time.
# 设置访问swap文件的I/O线程数,最后不要超过机器的核数,如果设置为0,那么所有对swap文件的操作都是串行的,可能会造成比较长时间的延迟,默认值为4
# vm-max-threads 4

############################### ADVANCED CONFIG ###############################

# Hashes are encoded in a special way (much more memory efficient) when they
# have at max a given numer of elements, and the biggest element does not
# exceed a given threshold. You can configure this limits with the following
# configuration directives.
# 指定在超过一定的数量或者最大的元素超过某一临界值时,采用一种特殊的哈希算法
# hash-max-zipmap-entries 512
# hash-max-zipmap-value 64

# Similarly to hashes, small lists are also encoded in a special way in order
# to save a lot of space. The special representation is only used when
# you are under the following limits:
list-max-ziplist-entries 512
list-max-ziplist-value 64

# Sets have a special encoding in just one case: when a set is composed
# of just strings that happens to be integers in radix 10 in the range
# of 64 bit signed integers.
# The following configuration setting sets the limit in the size of the
# set in order to use this special memory saving encoding.
set-max-intset-entries 512

# Similarly to hashes and lists, sorted sets are also specially encoded in
# order to save a lot of space. This encoding is only used when the length and
# elements of a sorted set are below the following limits:
zset-max-ziplist-entries 128
zset-max-ziplist-value 64


# 指定是否激活重置哈希,默认为开启
activerehashing yes

################################## INCLUDES ###################################

# 指定包含其他的配置文件,可以在同一主机上多个Redis实例之间使用同一份配置文件,而同时各实例又拥有自己的特定配置文件
# include /path/to/local.conf
# include /path/to/other.conf


四、后端Java

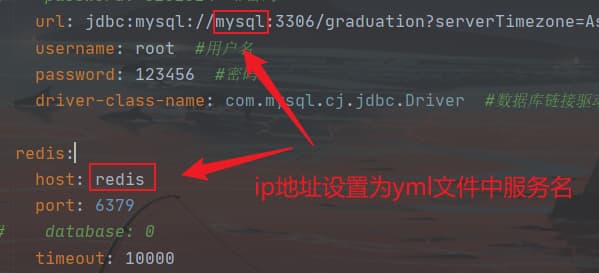

后端项目中数据库ip地址位置填写yml文件中定义的服务名,它会自动设置为yml文件分配的ip,如图👇

后端项目

docker-compose内后端服务

1
2
3
4
5
6
7
8
9
10
11
myweb:
image: web/test1 # 镜像名
build: . # 表示以当前目录下的Dockerfile开始构建镜像
ports:
- "8090:8090"
depends_on:
- mysql
- redis
networks:
data_security:
ipv4_address: 10.1.0.4

通过depends_on来定义服务之间的依赖关系,会依据依赖关系启动服务,后端服务要在数据库mysql、redis启动之后启动服务

1
2
3
4
5
6
7
8
9
10
11
12
FROM java:8
#暴露的端口
EXPOSE 8090

#把打成的jar包更名为 app.jar
ADD *.jar app.jar

#在创建app.jar
RUN bash -c 'touch /app.jar'

#执行的运行jar包命令
ENTRYPOINT ["java", "-jar", "/app.jar"]

这里如果重新修改了后端项目中数据库的ip,且已经创建了后端镜像,请先删除已经创建了的后端镜像(我这里是myweb),不然数据库的ip地址是不会更新的。

五、容器间通信

Docker容器间通信是很常见的操作,它允许一个容器使用另一个容器提供的服务。

一般在使用docker-compose启动服务时,被同一个docker-compose.yml定于的服务(容器)会运行在一个隔离环境中,也就是说在这个环境中的容器是不能直接访问(如果没有设置的话)

1
2
3
4
5
6
networks:
data_security: # 自定义网络名字
driver: bridge
ipam:
config:
- subnet: 10.1.0.0/24 #自定义固定容器ip 实现容器间通讯,增强docker-compose项目可移植性

数据库springboot项目分别使用不同的docker容器启动,这样会导致项目访问数据库受限,这里将docker-compose内所有服务都设置在同一网段中,可以管理容器及通信问题。 (在其他服务中不要设置IP地址为x.x.x.1,容易报错)

可以进入创建的docker网络查看一下相关信息👇

1
2
3
docker network ls		        # 输出docker网络列表
docker network inspect 网络id # 查看指定网络详情
docker network rm 网络id # 删除指定网络

六、完整代码

docker-compose.yml

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
version: '3'		# 自定义版本号,一般是2,3
services:
nginx:
image: nginx:latest
container_name: nginx
restart: always
volumes:
- ./config/nginx/nginx.conf:/etc/nginx/nginx.conf # nginx配置文件
- ./config/html/dist/:/usr/share/nginx/html/ # 前端打包文件
ports:
- "8080:80"
networks:
data_security:
ipv4_address: 192.128.0.8
privileged: true # 这个必须要,解决nginx的文件调用的权限问题

mysql:
image: mysql:8.0.12
container_name: mysql
restart: always
environment:
- TZ=Asia/Shanghai
- MYSQL_ROOT_PASSWORD=123456 #数据库初始话为root用户设置的默认密码
- MYSQL_DATABASE=xx # 项目数据库名
# - MYSQL_USER: #自定义数据库的用户,权限只作用于MYSQL_DATABASE配置的数据库
# - MYSQL_PASSWORD: #自定义数据库的用户,权限只作用于MYSQL_DATABASE配置的数据库
volumes:
# - ./config/mysql/cnf/my.cnf:/etc/my.cnf
# - ./config/mysql/data:/var/lib/mysql
- ./config/mysql/init/xx.sql:/docker-entrypoint-initdb.d/xx.sql # 自己数据库sql文件
ports:
- "3306:3306"
networks:
data_security:
ipv4_address: 192.128.0.2
command: --default-authentication-plugin=mysql_native_password --character-set-server=utf8mb4 --collation-server=utf8mb4_unicode_ci --sql-mode='' --max-execution-time=1000

redis:
image: redis:latest
container_name: redis
restart: always
environment:
- TZ=Asia/Shanghai
- REDIS_ROOT_PASSWORD=passwd # redis密码
volumes:
- ./config/redis/conf/redis.conf:/etc/redis/redis.conf #挂载redis.conf不然后续重启redis密码会失效
- ./config/redis/data:/data
# - ./config/redis/log/redis.log:/logs/redis.log
ports:
- "6379:6379"
networks:
data_security:
ipv4_address: 192.128.0.3
# privileged: true
command: redis-server /etc/redis/redis.conf --requirepass passwd #指定配置文件启动redis

myweb:
image: web/test1 # 镜像名
build: . # 表示以当前目录下的Dockerfile开始构建镜像
ports:
- "8090:8090"
depends_on:
- mysql
- redis
networks:
data_security:
ipv4_address: 192.128.0.4

networks:
data_security: # 自定义网络名字
driver: bridge
ipam:
config:
- subnet: 192.128.0.0/16 #自定义固定容器ip 实现容器间通讯,增强docker-compose项目可移植性

在docker-compose.yml文件目录下直接输入第一条命令启动服务

1
2
3
4
docker-compose up			# 开启服务并显示日志
docker-compose up -d # 后台开启服务
docker logs -f 容器id # 查看指定已开启容器日志
docker-compose down # 一键关闭所有服务并清除已退出的容器

七、运行截图

如图👇,服务启动正常,浏览器输入http://your-ip:8080查看效果,没有效果的查看一下防火墙是否关了。

运行截图
